The waveguide switch has a stator and a conductive movable element, the stator between the waveguide tube end and the waveguide path, with the help of the high-frequency wave movable element, each path can be switched to conductive or non-conductive

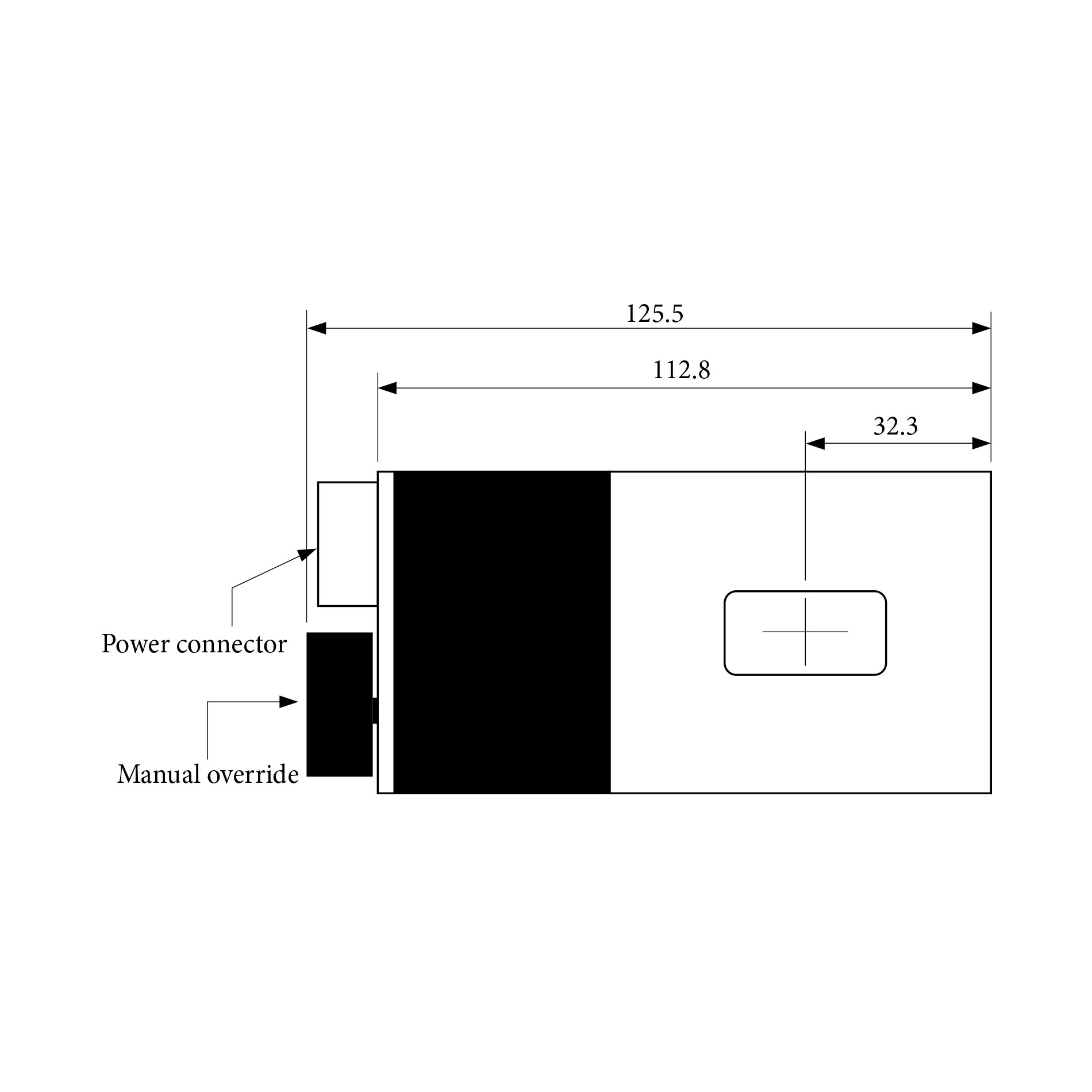

![WG516007 Waveguide Switch [7to 10 GHz] WR112](http://pmo9581c1.pic32.websiteonline.cn/upload/693t.jpg)
1. Low voltage switching speed
2. Long switching time
3. Low standing wave
4. High isolation
Product characteristics
1. Function of isolator, circulator and high-frequency cable switching
2. High working frequency range, excellent frequency characteristics, easy installation
|
Electrical Specifications |
|
|
Operating Frequency |
7.0-10.0 GHz |
|
Return Loss |
-28 dB |
|
Isolation |
70 dB |
|
Insertion Loss max. |
0.05 dB |
|
Power Handling |
5000W CW |
|
Driving Voltage |
Optional |
|
C Form Contacts |
4 in standard units |
|
Switching Time |
80 MS |
|
Power Connector |
ITT KPT02E14-19P |
|
Mechanical Specifications |
|
|
Waveguide Size |
WR112 |
|
Flange Type |
UG51 |
|
Pressure Capability |
20 PSIG including driving head |
|
Finish |
Iridite on WG and flanges. Black anodize on driving head |
|
Weight |
650g |
|
Environmental Specifications |
|
|
Operating Temperature |
-40 to 75 ℃ |
|
Storage Temperature |
-50 to +100 ℃ |
|
Humidity |
100% |
|
Shock and Vibration |
As encountered in standard transportation |
