Flexible Twistable Waveguide WG516035 [8.2 to 12.4GHz] UBR100/PBR100 UDR100/PDR100
Flexible Twistable Waveguide WG516035
Characteristics：
Good Performance in VSWR
Low Insertion Loss
Flexible

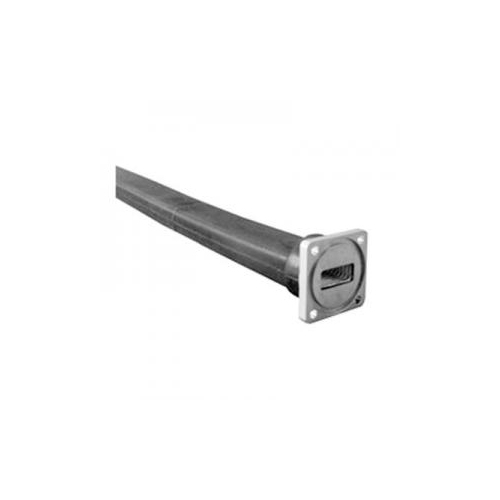

Illustration
Specifications
|
Electrical Specifications
|
|
Operation Frequency Band
|
8.2～12.4GHz
|
|
Insertion Loss
|
0.40dB/m
|
|
VSWR
|
1.15
|
|
Average Power
|
0.96 kW
|
|
Peak Power
|
180kW
|
|
General Specifications
|
|
Waveguide Size
|
WR90|WG16|R100
|
|
Interface
|
UBR100/PBR100 UDR100/PDR100
|
|
Length (L)
|
100 ～ 2000mm
|
|
Jacket
|
Silicone Rubber /Polysulfide Sealant
|
|
Mechanical Specifications
|
|
Maximum Twist
|
308deg/m
|
|
Minimum Bend Radius (E Plane)
|
66mm
|
|
Minimum Bend Radius (H Plane)
|
120mm
|
|
Environmental Specifications
|
|
Operation Temperature
|
-40℃ ～ +75℃
|
|
Storage Temperature
|
-55℃ ～ +85℃
|
