Flexible Twistable Waveguide WG516037 [12.4 to 18GHz] UBR140/PBR140 UDR140/PDR140

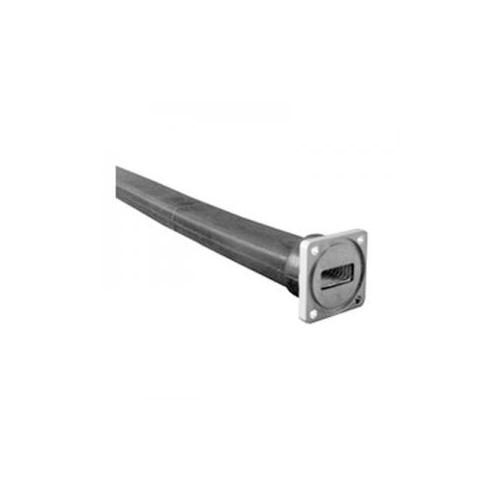

Flexible Twistable Waveguide WG516037
Characteristics
Good performance in VSWR
Low Insertion Loss
Flexible
Illustrations
Specifications
|
Electrical Specifications
|
|
Operation Frequency Band
|
12.4～18.0GHz
|
|
Insertion Loss
|
0.55dB/m
|
|
VSWR
|
1.15
|
|
Average Power
|
0.40 kW
|
|
Peak Power
|
100kW
|
|
General Specifications
|
|
Waveguide Size
|
WR62|WG18|R140
|
|
Interface
|
UBR140/PBR140 UDR140/PDR140
|
|
Length (L)
|
100 ～ 2000mm
|
|
Jacket
|
Silicone Rubber /Polysulfide Sealant
|
|
Mechanical Specifications
|
|
Maximum Twist
|
436deg/m
|
|
Minimum Bend Radius (E Plane)
|
54mm
|
|
Minimum Bend Radius (H Plane)
|
105mm
|
|
Environmental Specifications
|
|
Operation Temperature
|
-40℃ ～ +75℃
|
|
Storage Temperature
|
-55℃ ～ +85℃
|
