Flexible Twistable Waveguide WG516038 [17.7 to 26.5GHz] UBR220/PBR220
Flexible Twistable Waveguide WG516038
Characteristics
Good performance in VSWR
Low Insertion Loss
Flexible
Stable

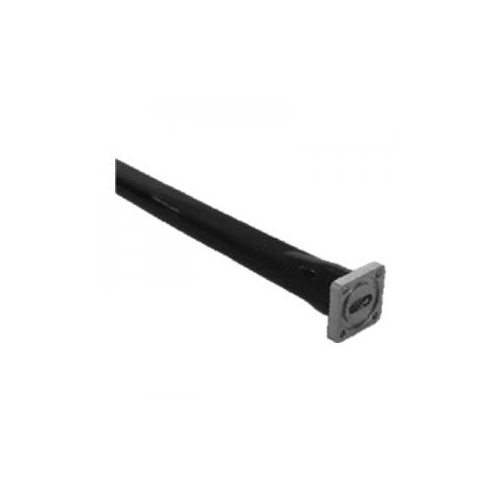

Illustration
Specifications
|
Electrical Specifications
|
|
Operation Frequency Band
|
17.7～26.5GHz
|
|
Insertion Loss
|
1.30dB/m
|
|
VSWR
|
1.25
|
|
Average Power
|
0.1kW
|
|
Peak Power
|
39kW
|
|
General Specifications
|
|
Waveguide Size
|
WR42|WG20|R220
|
|
Interface
|
UBR220/PBR220
|
|
Length (L)
|
100 ～ 2000mm
|
|
Jacket
|
Silicone Rubber /Polysulfide Sealant
|
|
Mechanical Specifications
|
|
Maximum Twist
|
510deg/m
|
|
Minimum Bend Radius (E Plane)
|
41mm
|
|
Minimum Bend Radius (H Plane)
|
78mm
|
|
Environmental Specifications
|
|
Operation Temperature
|
-40℃ ～ +75℃
|
|
Storage Temperature
|
-55℃ ～ +85℃
|
