Elliptic Flexible Waveguide WG516028 [10.7 to 11.7GHz] BJ100

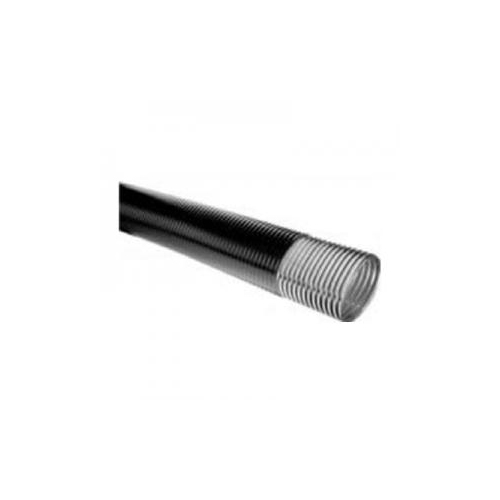

Elliptical Flexible Waveguide WG516028
Characteristics
Good Performance in VSWR, Low Insertion Loss
Convenience install and transportation
Flexible
Specifications
|
Electrical Specifications
|
|
Operation Frequency Band
|
10.7～11.7GHz
|
|
Flange
|
BJ100
|
|
VSWR
|
1.15
|
|
Insertion loss
|
10.3dB/100m@10.7GHz，9.8dB/100m@11.7GHz
|
|
Average Power
|
1.5kW
|
|
General Specifications
|
|
Conductor Material
|
Corrugated Copper
|
|
Jacket Material
|
PE
|
|
Jacket Color
|
Black
|
|
Dimension Over Jacket
|
33mm × 21mm
|
|
Weight
|
0.5kg/m
|
|
Mechanical Specifications
|
|
Minimum Bend Radius (E Plane)
|
150mm
|
|
Minimum Bend Radius (H Plane)
|
300mm
|
|
Maximum Operating Pressure
|
55kPa
|
|
Environmental Specifications
|
|
Operation Temperature
|
-55℃ ～ +85℃
|
|
Storage Temperature
|
-55℃ ～ +85℃
|
