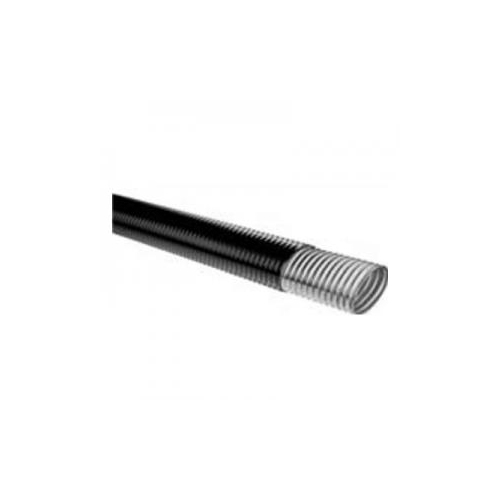

Elliptical Flexible Waveguide WG516029 [10.95 to 12.75GHz] BJ120
![WG516029 Elliptical Flexible Waveguide [10.95 to 12.75GHz] BJ120 | Yach.com](http://pmo9581c1.pic32.websiteonline.cn/upload/WG516029_06co.jpg)
Elliptical Flexible Waveguide WG516029
Characteristics
Good performance in VSWR
Low Insertion Loss
Convenience install and transportation
Flexible
Low Insertion Loss
Convenience install and transportation
Flexible
Specification
|
Electrical Specifications |
|
| Operation Frequency Band | 10.95～12.75GHz |
| Flange | BJ120 |
| VSWR | 1.20 |
| Insertion loss | 10.8dB/100m@10.95GHz，10.5dB/100m@12.75GHz |
| Average Power | 1.0kW |
|
General Specifications |
|
| Conductor Material | Corrugated Copper |
| Jacket Material | PE |
| Jacket Color | Black |
| Dimension Over Jacket | 29.0mm × 15.0mm |
| Weight | 0.4kg/m |
|
Mechanical Specifications |
|
| Minimum Bend Radius (E Plane) | 150mm |
| Minimum Bend Radius (H Plane) | 300mm |
| Maximum Operating Pressure | 55kPa |
|
Environmental Specifications |
|
| Operation Temperature | -55℃ ～ +85℃ |
| Storage Temperature | -55℃ ～ +85℃ |
